• Locking and non-locking screws

• Made of titanium alloy

• Non-cannulated

• Self-tapping threads

• No hexalobular socket

Plates

• Made of titanium alloy ASTM F136 and anodized

• Anatomical contour and low profile, reducing prominences and minimizing soft tissue irritation

• Compatible with all models of locking and non-locking screws

• They have three orientations (right, left and single), identified by color-coding:

• Right: gold anodized

• Left: anodized in pink color

• Unique: green anodized

• Osteotomy plates are anodized in water green.

• Locking screws
• Designed to be used in blocked holes.
They have specially designed threads for attachment to the cortical portion of the bone.

• Features:
• Distal Thread (Diameter): 2.7 mm
• Proximal Thread (Diameter): 5.1 mm
• Length: 8 to 30 mm

• Distal Thread (Diameter): 3.5 mm
• Proximal Thread (Diameter): 5.1 mm
• Length: 8 to 50 mm

• Non-locking screws
• Designed to be used in compression or blocked holes. They have specially designed threads for attachment to the cancellous portion of the bone.

• Features:
• Distal Thread (Diameter): 2.7 mm
• Head Diameter: 5.0 mm
• Length: 8 to 30 mm

• Distal Thread (Diameter): 3.5 mm
• Head Diameter: 5.0 mm
• Length: 8 to 50 mm

• Distal Thread (Diameter): 4.0 mm
• Head Diameter: 5.0 mm
• Length: 8 to 60 mm

• FastPin
• Is an accessory that is compatible with the blocked holes in the Feet RZ Rigid Fixation Plate System plates.
• The FastPin makes it possible to interconnect the Feet RZ Rigid Fixation Plate System plates to a PG Razek Cannulated Compression Screw (D3.0 models), offering additional compression in arthrodeses.

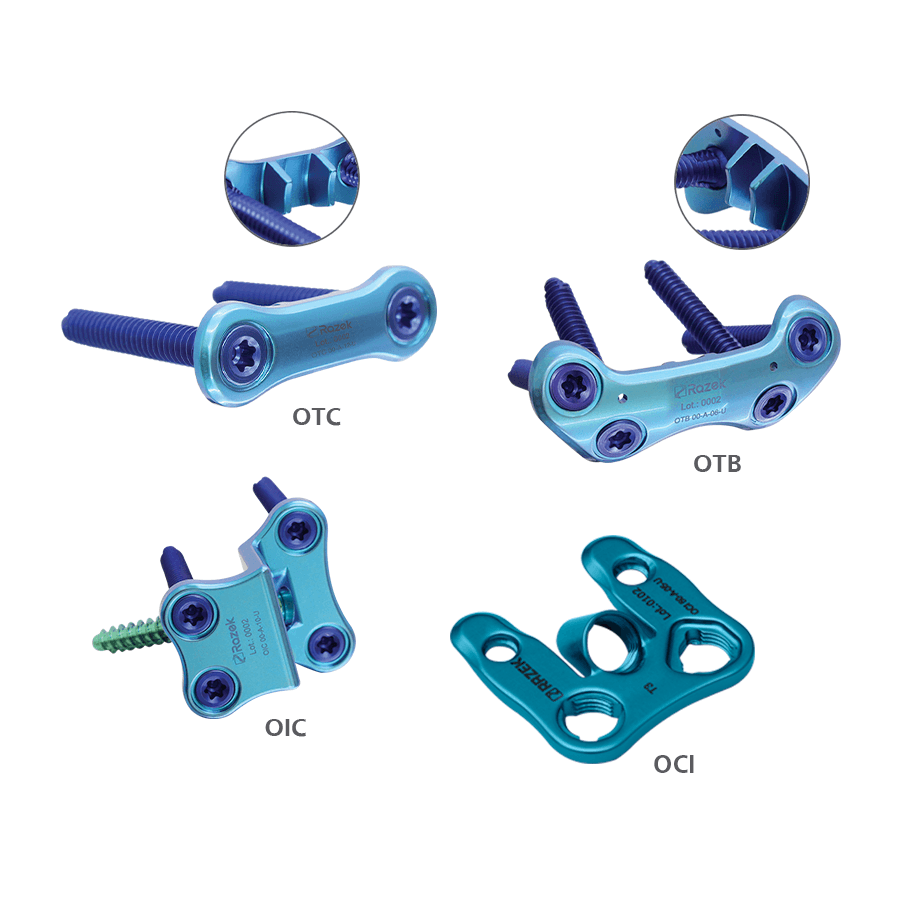

• Cotton and Evans Osteotomy Plate – OTC
• Used in procedures to correct flat feet, through wedge osteotomies on the calcaneus (Evans) and medial cuneiform bone (Cotton).

• Features:
• Color: aqua green
• Thickness: 1.5 mm
• Variations in wedge spacing: 2, 4, 5, 6, 7, 8, 10, and 12 (mm)

• Models:
• Cotton and Evans Osteotomy 2 Holes 23 x 2 mm – OTC 00-A-02-U
• Cotton and Evans Osteotomy 2 Holes 25 x 4 mm – OTC 00-A-04-U
• Cotton and Evans Osteotomy 2 Holes 26 x 5 mm – OTC 00-A-05-U
• Cotton and Evans Osteotomy 2 Holes 27 x 6 mm – OTC 00-A-06-U
• Cotton and Evans Osteotomy 2 Holes 28 x 7 mm – OTC 00-A-07-U
• Cotton and Evans Osteotomy 2 Holes 29 x 8 mm – OTC 00-A-08-U
• Cotton and Evans Osteotomy 2 Holes 31 x 10 mm – OTC 00-A-10-U
• Cotton and Evans Osteotomy 2 Holes 33 x 12 mm – OTC 00-A-12-U

• Bunion Osteotomy Plate – OTB
• Used in Hallux Valgus correction procedures, through a wedge osteotomy at the base of the first metatarsal.

• Features:
• Color: aqua green
• Thickness: 1.5 mm
• Variations in wedge spacing: 2, 3, 4, 5, and 6 (mm)

• Models:
• Bunion Osteotomy 4 Holes 32 x 2 mm – OTB 00-A-02-U
• Bunion Osteotomy 4 Holes 33 x 3 mm – OTB 00-A-03-U
• Bunion Osteotomy 4 Holes 34 x 4 mm – OTB 00-A-04-U
• Bunion Osteotomy 4 Holes 35 x 5 mm – OTB 00-A-05-U
• Bunion Osteotomy 4 Holes 36 x 6 mm – OTB 00-A-06-U

• Heel Osteotomy Plate – OIC
• Used in procedures to correct rearfoot valgus, through a sliding osteotomy in the calcaneus.

• Features:
• Color: aqua green
• Thickness: 1.8 mm
• Variations in osteotomy height: 6 x 8 x 10 (mm)

• Models:
• Heel Osteotomy 5 Holes 24 x 6 mm – OIC 00-A-06-U
• Heel Osteotomy 5 Holes 24 x 8 mm – OIC 00-A-08-U
• Heel Osteotomy 5 Holes 24 x 10 mm – OIC 00-A-10-U

• Tarsometatarsal Fusion Plate – TMT
• Used in procedures to treat Lisfranc fractures by fusing the tarsal and metatarsal bones.

• Features:
• Color: gold (right) and pink (left)
• Thickness: 1.4 mm
• Plate size: S and M
• Direction: right and left
• Insertion in the metatarsals: 1st and 2nd – 2nd and 3rd
• Geometry: curved and flat

• Models:
• Tarsometatarsal fusion 12 Curve 4 Holes Left 36 mm – TMT 05-E-12-C
• Tarsometatarsal Fusion 12 Curve 4 Holes Right 36 mm – TMT 05-D-12-C
• Tarsometatarsal Fusion 12 Curve 4 Holes Left 41 mm – TMT 50-E-12-C
• Tarsometatarsal Fusion 12 Curve 4 Holes Right 41 mm – TMT 50-D-12-C
• Tarsometatarsal Fusion 12 Flat 4 Holes Left 36 mm – TMT 05-E-12-P
• Tarsometatarsal Fusion 12 Flat 4 Holes Right 36 mm – TMT 05-D-12-P
• Tarsometatarsal Fusion 12 Flat 4 Holes Left 41 mm – TMT 50-E-12-P
• Tarsometatarsal Fusion 12 Flat 4 Holes Right 41 mm – TMT 50-D-12-P

Note: 1st and 2nd Tarsometatarsal Fusion Plates

• Tarsometatarsal Fusion 23 Curve 4 Holes
Left 35 mm – TMT 05-E-23-C
• Tarsometatarsal Fusion 23 Curve 4 Holes
Right 35 mm – TMT 05-D-23-C
• Tarsometatarsal Fusion 23 Curve 4 Holes
Left 38 mm – TMT 50-E-23-C
• Tarsometatarsal Fusion 23 Curve 4 Holes
Right 38 mm – TMT 50-D-23-C
• Tarsometatarsal Fusion 23 Flat 4 Holes
Left 35 mm – TMT 05-E-23-P
• Tarsometatarsal Fusion 23 Flat 4 Holes
Right 35 mm – TMT 05-D-23-P
• Tarsometatarsal Fusion 23 Flat 4 Holes
Left 38 mm – TMT 50-E-23-P
• Tarsometatarsal Fusion 23 Flat 4 Holes
Right 38 mm – TMT 50-D-23-P
Note: 2nd and 3rd Tarsometatarsal Fusion Plates

• Tarsometatarsal Fusion Plates – MTP
• Used in procedures to treat Hallux Rigidus, by fusing the first metatarsophalangeal joint.

• Features:
• Color: gold (right) and pink (left)
• Thickness: 1.4 mm
• Plate size: S and M
• Direction: right and left

• Models:
• Metatarsophalangeal Fusion 6 Holes
Right 45 mm – MTP 05-D-00-U
• Metatarsophalangeal Fusion 6 Holes
Left 45 mm – MTP 05-E-00-U
• Metatarsophalangeal Fusion 6 Holes
Right 50 mm – MTP 50-D-00-U
• Metatarsophalangeal Fusion 6 Holes
Left 50 mm – MTP 50-E-00-U

• Cuneiform Metatarsal Fusion Plate – MTC
• Used in fusion procedures of the medial cuneiform and first metatarsal bones.

• Features:
• Color: gold (right) and pink (left)
• Thickness: 1.4 mm
• Plate size: S and M
• Direction: right and left

• Models:
• Cuneiform Metatarsal Fusion 5 Holes
Right 39 mm – MTC 05-D-00-U
• Cuneiform Metatarsal Fusion 5 Holes
Left 39 mm – MTC 05-E-00-U
• Cuneiform Metatarsal Fusion 5 Holes
Right 42 mm – MTC 50-D-00-U
• Cuneiform Metatarsal Fusion 5 Holes
Left 42 mm – MTC 50-E-00-U

• Medial Columnar Fusion Plate – MCF
• Used in procedures to treat Charcot’s foot, by fusing the navicular, medial cuneiform and first metatarsal bones.

• Features:
• Color: gold (right) and pink (left)
• Thickness: 1.4 mm
• Plate size: S and M
• Direction: right and left

• Models:
• Medial Column Fusion 9 Holes
Right 61 mm – MCF 05-D-00-U
• Medial Column Fusion 9 Holes
Left 61 mm – MCF 05-E-00-U
• Medial Column Fusion 9 Holes
Right 66 mm – MCF 50-D-00-U
• Medial Column Fusion 9 Holes
Left 66 mm – MCF 50-E-00-U

• Single Universal Plate – PSU
• Used in a wide variety of fracture and fusion procedures on foot bones.

• Features:
• Color: green (only option)
• Thickness: 1.4 mm
• Plate size: S, M and L
• Number of holes: 2 and 3
• Stabilization method: compression and fixation

• Models:
• Universal Simple Compression 2 Holes
21 mm – PSU 05-A-02-C
• Universal Simple Compression 2 Holes
29 mm – PSU 50-A-02-C
• Universal Simple Compression 2 Holes
27 mm – PSU 50-A-02-F
• Universal Simple Compression 2 Holes
36 mm – PSU 95-A-03-C
• Universal Simple Compression 2 Holes
37 mm – PSU 95-A-02-C

• Universal Y-Plate – PCY
• Used in a wide variety of fracture and fusion procedures on the bones of the foot.

• Features:
• Color: gold (right) and pink (left)
• Thickness: 1.4 mm
• Plate size: S and M
• Direction: right and left

• Models:
• Y-shaped Universal 4 Holes Right 37 mm – PCY 05-D-00-U
• Y-shaped Universal 4 Holes Left 37 mm – PCY 05-E-00-U
• Y-shaped Universal 6 Holes Right 53 mm – PCY 50-D-00-U
• Y-shaped Universal 6 Holes Left 53 mm – PCY 50-E-00-U

• Back of the Heel Plate – PPC
• Used in procedures to treat calcaneal fractures.

• Features:
• Color: gold (right) and pink (left)
• Thickness: minimum 1.4 mm and maximum: 2.3 mm
• Plate size: S, M and L
• Direction: right and left

• Models:
• Back of the Heel 13 Holes
Left 59 mm – PPC 05-E-00-U
• Back of the Heel 13 Holes
Right 59 mm – PPC 05-D-00-U
• Back of the Heel 13 Holes
Left 70 mm – PPC 50-E-00-U
• Back of the Heel 13 Holes
Right 70 mm – PPC 50-D-00-U
• Back of the Heel 14 Holes
Left 80 mm – PPC 95-E-00-U
• Back of the Heel 14 Holes
Right 80 mm – PPC 95-D-00-U

• Single Plate for Back of the Heel – PSC
• Used in procedures to treat calcaneal fractures, using a percutaneous approach.

• Features:
• Color: gold (right) and pink (left)
• Thickness: minimum 1.4 mm and maximum: 2.3 mm
• Plate size: S, M and L
• Direction: right and left

• Models:
• Single Back of the Heel 8 Holes
Left 59 mm – PSC 05-E-00-U
• Single Back of the Heel 8 Holes
Right 59 mm – PSC 05-D-00-U
• Single Back of the Heel 8 Holes
Left 70 mm – PSC 50-E-00-U
• Single Back of the Heel 8 Holes
Right 70 mm – PSC 50-D-00-U
• Single Back of the Heel 9 Holes
Left 80 mm – PSC 95-E-00-U
• Single Back of the Heel 9 Holes
Right 80 mm – PSC 95-D-00-U

• Double Universal Plate – PCU
• Used in a wide variety of fracture and fusion procedures on the bones of the foot.

• Features:
• Color: green (single), gold (right) and pink (left)
• Thickness:
• PCU 00-A-14-U / PCU 00-A-11-U / PCU 00-A-08-U 1.8 mm
(flaps) and 2.3 mm (body)
• Other plates: 1.8 mm
• Direction: single, right and left
• Number of holes: 4, 5, 6, 7, 8, 11, and 14

• Models:
• Double Universal 4 Holes Right 29 mm – PCU 00-D-04-U
• Double Universal 4 Holes Left 29 mm – PCU 00-E-04-U
• Double Universal 5 Holes Right 35 mm – PCU 00-D-05-U
• Double Universal 5 Holes Left 35 mm – PCU 00-E-05-U
• Double Universal 6 Holes Right 48 mm – PCU 00-D-06-U
• Double Universal 6 Holes Left 48 mm – PCU 00-E-06-U
• Double Universal 7 Holes 60 mm – PCU 00-A-07-U
• Double Universal 8 Holes 66 mm – PCU 00-A-08-U
• Double Universal 11 Holes 94 mm – PCU 00-A-11-U
• Double Universal 14 Holes 122 mm – PCU 00-A-14-U

• The Lapidus Fusion Plate – LPD
• Used in procedures to correct Hallux Valgus by fusing the first metatarsocuneiform joint using the Lapidus technique.

• Intraosseous Heel Osteotomy Plate – OCI
• Used in procedures to correct valgus deformity of the hindfoot through a sliding osteotomy of the calcaneus.

• Hook Plate for the Fifth Metatarsal – GQM
• Used in procedures to treat proximal fractures of the fifth metatarsal.

• Distal Fibula Plate – FDL
• Used in procedures to treat ankle fractures in the distal fibula region.
