Upper Treat RZ Rigid Fixation Plate System
Products Inicio Products ANVISA n°: 80356130215Images for illustrative purposes only The Upper Treat RZ Rigid Fixation Plate System was developed for osteosynthesis of the upper limbs. It is a rigid fixation system made up of titanium plates fixed with screws, providing stabilization and stable fixation of bone fragments, even in cases of osteopenic bones.The KlavFix subsystem plates were developed for the treatment of clavicle fractures and have an anatomical geometry and low profile. They are subdivided into three classes: Anterior Plate, Superior Medial Plate and Superior Distal Plate.This product comes in various types and sizes of plates and screws, which are compatible with each other, so that the surgeon can choose according to the patient’s different anatomical structures. ANVISA n°: 80356130215Images for illustrative purposes only Technical Specifications: UT Blocking and UT Non-Blocking Screws• Made from ASTM F136 titanium alloy• Non-cannulated• Self-tapping• Hexalobular• Identified by color-coding system:• 2.7 mm screws: pink anodized• 3.5 mm screws: blue anodized • KlavFix plates• Made of ASTM F136 titanium alloy and anodized• Anatomical contour and low profile, reducing prominences and minimizing soft tissue irritation• Compatible with all UT and UT non-blocking screw models• Have three orientations (right, left and single), identified by color-coding:• Right: gold anodized• Left: pink anodized• Single: green anodized Models UT Blocking Screws• Proximal and/or distal blocking of the plate, which may or not provide angular stability, depending on how insertion is carried out. • Features:• Distal Thread (Diameter): 2.7 mm• Proximal Thread (Diameter): 5.1 mm• Length: 8 to 24 mm • Distal Thread (Diameter): 3.5 mm• Proximal Thread (Diameter): 5.1 mm• Length: 8 to 24 mm • UT Non-Blocking Screws• Used for compression through the plate’s compression hole in order to facilitate fracture healing or fusion.• Can also be used for neutral fixation through the locking holes. • Features:• Distal Thread (Diameter): 2.7 mm• Head Diameter: 5.0 mm• Length: 8 to 24 mm • Distal Thread (Diameter): 3.5 mm• Head Diameter: 5.0 mm• Length: 8 to 24 mm • KlavFix Plates• Used in conjunction with locking and non-locking screws to reduce and stabilize the fracture or fusion. • KlavFix Superior Distal Plate – KSD• Distal third fractures, including type I fractures (without ligament rupture) and type II fractures (with coracoclavicular rupture); • KlavFix Anterior Lateral Plate – KAL• Extra-articular distal third fractures; • KlavFix Anterior Medial and Superior Medial Plates – KAM and KSM• Middle third fractures in general. MANUAL DOUBT CATÁLOGO VÍDEO Related Products edit post Fastfit Suture Razek edit post EuroScrew edit post FastFit Anchor Razek edit post Cannulated Compression Screw MM Razek
Fast Retriever Cannula
Products Home Products ANVISA No.: 80356139029Images for illustrative purposes only The Fast Retriever Cannula has the function of providing the necessary devices to assist in making sutures in intra-articular or non-articular tissues in orthopedic surgeries in general, in a practical and safe way. ANVISA No.: 80356139029Images for illustrative purposes only Technical specifications • Single-use product • Sterilization validity: 3 years Models • Straight Loop Hook L (Code: 742740100) • Curved Loop Hook L (Code: 742740200) • Curved Loop Hook C (Code: 742740300) MANUAL DOUBT CATÁLOGO VÍDEO Related Products edit post Niti Pass edit post Razek Wave Electrode edit post RZ Guide Wire edit post Razek Flush Tip
Fastfit Suture Razek
Products Home Produtos ANVISA No.: 80356130214Images for illustrative purposes only FastFit Suture Razek is suitable for suturing, approximating and binding soft tissue in orthopaedic surgery. The sutures in the FastFit Suture Razek family are supplied braided and in pre-cut lengths. They are available in thread and loop form. ANVISA No.: 80356130214Images for illustrative purposes only Technical specifications • Produto de uso único • Validade da esterilização: 3 anos Models • FSL 15-90B (Código: 500150020) • FSL 12-90C (Código: 500150030) • FSF 15-90B (Código: 500150040) • FSF 15-90C (Código: 500150050) • FSF 15-90A (Código: 500150060) MANUAL DOUBT CATÁLOGO VÍDEO Related Products edit post EuroScrew edit post FastFit Anchor Razek edit post Cannulated Compression Screw MM Razek edit post FastFit Anchor Razek – Adjustable
Niti Pass
Products Home Products ANVISA no.: 80356139027Images for illustrative purposes only Niti Pass is a device designed to allow the manipulation and passage of sutures through bone tunnels in different orthopedic, arthroscopic and open surgical procedures. ANVISA no.: 80356139027Images for illustrative purposes only Specifications: – Single use products– Sterilization shelf life: 3 years Models The Niti Pass is composed of: Braided Nitinol Loop: enables the capture and manipulation of suture threads, allowing them to pass through bone tunnels; External Cannula: flexible cannula that allows the Braided Nitinol Loop to pass through bone tunnels. Braided nitinol length: 286 mmTube length: 200 mmTube diameter: DE2.5 x DI1.5 mm MANUAL DOUBT CATÁLOGO VÍDEO Related Products edit post Razek Wave Electrode edit post RZ Guide Wire edit post Razek Flush Tip edit post Nano Guillotine
Razek Wave Electrode
Products Home Products ANVISA No.: 80356130033Images for illustrative purposes only The family of electrodes manufactured by Razek is used in monopolar arthroscopic surgical procedures. They are indicated for ablation, coagulation, cutting, dissection and cauterization. The electrosurgical pen is not part of the product. ANVISA No.: 80356130033Images for illustrative purposes only Technical specifications • Single-use product • Sterilization validity: 3 years Models Rounded (Angles: 0°, 30°, 45°, 60°, and 90°) Striped (Angles: 0°, 30°, 45°, 60°, and 90°) Shell (Angles: 0°, 30°, 45°, 60°, and 90°) Mini Shell (Angles: 0°, 30°, 45°, 60°, and 90°) Hook (short/medium/long) Fire Blade The full list of models is available in the user manual. MANUAL DOUBT CATALOG VIDEO Related Products edit post RZ Tunneling Tool edit post Razek Arthroscopy cannulas edit post Razek Disposable Tourniquet edit post RZ Pump Irrigation Device
EuroScrew
Products Home Products EuroScrew ANVISA No.: 80686360193Images for illustrative purposes only EuroScrew EuroScrew is a bio-absorbable interference screw for cruciate ligament reconstruction. This screw has a design that is equally adapted to rotator cuff or gracilis and semitendinosus tendon grafts. ANVISA No.: 80686360193Images for illustrative purposes only Technical specifications Composed 100% of PLA, a polymer known to be degradable by hydrolysis; Femoral screws have a hemispherical head, which reduces the risk of damage to the femoral glenoid; Tibia screws have a flat head, which allows them to be screwed deep into the tibia canal. They are longer and wider (in diameter) than the femoral screws. Single-use product. Models Femoral Screw:• EuroScrew Ø 7 mm L 24 mm – T720724• EuroScrew Ø 8 mm L 24 mm – T720824• EuroScrew Ø 9 mm L 24 mm – T720924 Tibial Screw:• EuroScrew Ø 8 mm L 30 mm – T720830• EuroScrew Ø 9 mm L 30 mm – T720930• EuroScrew Ø 10 mm L 30 mm – T721030 MANUAL DOUBT CATALOG VIDEO Related Products edit post FastFit Anchor Razek (Model with tape) edit post FastFit Anchor Razek – Adjustable edit post FastFit Knotless Razek edit post FastFit Razek
FastFit Anchor Razek
Products Home Products FastFit Anchor Razek ANVISA No.: 80356130205Images for illustrative purposes only FastFit Anchor Razek The FastFit Anchor Razek flexible suture anchor family is indicated for use in arthroscopic or conventional orthopedic surgical procedures on the upper and lower limbs, in which sutures are used to join soft tissues such as ligaments, tendons or joint capsules to the bone. Its design is based on the principles of minimal aggression and greater holding power. We have needlepoint and non-needlepoint models. Reduced bone removal – the smaller diameter drill makes the hole created for the implant much smaller. As a result, there is greater preservation of the bone-tissue contact surface, as well as less aggression, considerably reducing post-surgical pain; Complications such as fractures, ostolysis and synovitis, which can occur with other materials, especially bioabsorbable materials, are minimized. The reduced diameter of the anchor reduces the need for larger bone perforations, which are common with metal, peek and bioabsorbable anchors, minimizing complications such as bone fragility and relesions. In addition, in cases where more anchors are needed, there will be less chance of complications and a greater possibility of their proper positioning; With the implant based entirely on sutures, the possibility of intra-articular free bodies that can occur in other types of implants is eliminated. ANVISA No.: 80356130205Images for illustrative purposes only Technical specifications • Single-use product • Sterilization validity: 3 years • Available in three diameters: 1.6 mm, 2.0 mm and 2.5 mm – loaded with very high-strength wires (UHMWPE * ForceFiber® Teleflex*); Models FASTFIT ANCHOR RAZEK – 1.6 mm Not adjustable1.6 (FFA 21-16S) – (Code 500120070)1.6 (FFA 21-16M) – (Code 500120075)1.6 (FFA 21-16L) – (Code 500120077)1.6 (FFA 12-16S) – (Code 500120080)1.6 (FFA 12-16M) – (Code 500120085)1.6 (FFA 12-16L) – (Code 500120087) With needles1.6 (FFA 12-16SA) – (Code 500120155)1.6 (FFA 21-16SA) – (Code 500120150) FASTFIT ANCHOR RAZEK – 2.0 mm Not adjustable2.0 (FFA 22-20M) – (Code 500120060)2.0 (FFA 22-20L) – (Code 500120065) With needles2,0 (FFA 22-20MA) – (Code 500120145) FASTFIT ANCHOR RAZEK – 2.5 mm Not adjustable2.5 (FFA 22-25M) – (Code 500120090)2.5 (FFA 22-25L) – (Code 500120095) With needles2,5 (FFA 22-25MA) – (Code 500120295) MANUAL CATALOG VIDEO DOUBT Related Products edit post FastFit Button Razek edit post FastFit Anchor Razek – Adjustable edit post Feet RZ Rigid Fixation Plate System edit post PG Razek Cannulated Compression Screw
Duet
Products Home Products Duet ANVISA No.: 80030819019Images for illustrative purposes only Duet The Duet equipment from the Triplet Family has the following functions: High-resolution image capture and recording in arthroscopic and similar surgeries. Illumination of the surgical field in arthroscopic and similar surgeries. The control unit of the Triplet Family equipment has a touch-sensitive graphic display for viewing information and messages and for adjusting, configuring and activating its functions, which provides the user an intuitive operation. ANVISA No.: 80030819019Images for illustrative purposes only Technical specifications • Power supply voltage: 100 – 240 V~ • Video outputs for monitor: HDMI, DVI-D • USB storage drive specifications: USB-A connection / Formatting: FAT32 • Video recording format: Container: ISO MP4/M4A Codec: H.264/AVC • Image aspect ratio: 16:9 • Resolution: 1920x1080p • Capture rate: 60 fps • Maximum LED power: 75 W • Maximum intensity: 3600 lumens DOUBT MANUAL CATALOG VIDEO Related Products edit post Power Motor System edit post Razek Pump Evolution – RPE-I edit post Razek ITR-I Tourniquet Inflator edit post Osteomax

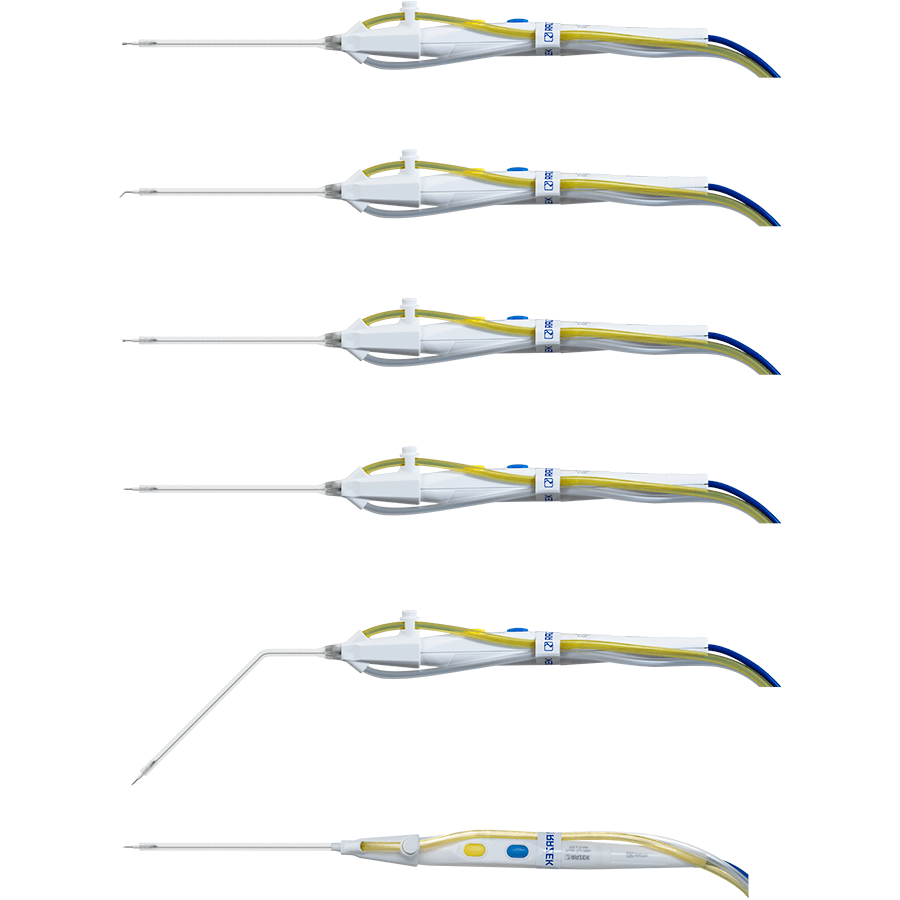

Razek Flush Tip
Products Home Products ANVISA No.: 80356130195Images for illustrative purposes only Razek Flush Tip has an irrigation and aspiration function on the active tip, which can simultaneously perform tissue ablation, coagulation, cutting and cauterization. Irrigation is carried out by gravity and suction, connected to the hospital aspirator, is controlled by the surgeon via a connector. These characteristics allow the surgeon to be guided in a clear field of vision, with extreme safety and precision, with the advantages of preserving the surrounding structures, avoiding possible bleeding and improving the post-operative period. About the product:• Different models of active tip, with specific purposes, designed to provide access to more difficult places; • Integrated irrigation and suction controlled by the surgeon, allowing simultaneous and independent work; • Wide range of lengths, compatible with various surgical procedures; • Cutting or coagulation triggered by manual control on the pen itself; • Precise cutting and excellent cauterization, little bleeding in highly vascularized areas; • It has a temperature-resistant insulating polymer to prevent accidental burns; • Non-stick coated tip; • Monopolar output. ANVISA No.: 80356130195Images for illustrative purposes only Technical specifications • Single-use product • Sterilization validity: 2 years Models Straight Flush CutStraight Flush Cut 27 x 3 mm (Code 881460220);Straight Flush Cut 45 x 3 mm (Code 881460010);Straight Flush Cut 52 x 3 mm (Code 881460020);Straight Flush Cut 62 x 3 mm (Code 881460030);Straight Flush Cut 84 x 3 mm (Code 881460040);Straight Flush Cut 110 x 3 mm (Code 881460050);Straight Flush Cut 135 x 3 mm (Code 881460060);Straight Flush Cut 160 x 3 mm (Code 881460070);Straight Flush Cut 186 x 3 mm (Code 881460080). Flush Cut 45°Flush Cut 45° 50 x 3 mm (Code 881460090);Flush Cut 45° 60 x 3 mm (Code 881460100);Flush Cut 45° 86 x 3 mm (Code 881460110);Flush Cut 45° 112 x 3 mm (Code 881460120);Flush Cut 45° 137 x 3 mm (Code 881460130);Flush Cut 45° 162 x 3 mm (Code 881460140);Flush Cut 45° 188 x 3 mm (Code 881460150). Flush Cut in Curve 45°Flush Cut in Curve 45º 108 x 3 mm (Code 881460160);Flush Cut in Curve 45º 133 x 3 mm (Code 881460170);Flush Cut in Curve 45º 158 x 3 mm (Code 881460180);Flush Cut in Curve 45º 184 x 3 mm (Code 881460190). Flush Probe (Code 881460200) Flush Split (Code 881460210) MANUAL CATALOG DOUBT VIDEO Related Products edit post Suture Compression Hook edit post Razek Arthroscopy cannulas edit post HPF Surgical Cutter edit post Mini Microdebridement Cannula – ENTM
Razek Arthroscopy Instruments – Shoulder, Hip and Knee
Products Home Products ANVISA No.: 80356130034Images for illustrative purposes only Razek Arthroscopy Instruments their purpose is to provide surgeons with the necessary instruments to carry out procedures in arthroscopic surgery of the shoulder, hip and knee, as well as other specialties. ANVISA No.: 80356130034Images for illustrative purposes only Items Shoulder• Bird Beak, Straight Tip (R0052) – 175mm (Code 741830000)• Bird Beak, Up 30° Tip (R0054) – 175mm (Code 741850000)• Bird Beak, Straight Tip, Curved Left 30° (R0056) – 175mm (Code 741870000)• Bird Beak, Straight Tip, Curved Right 30° (R0058) – 175mm (Code 741890000)• Suture Cutter, Straight Tip (R0060) – 175mm (Code 741910000)• Grasper, Straight Tip, Loose Body Without Serrated (R0059) – 175mm (Code 741900000)• Grasper, Straight Tip, 3,4mm Bite Width, Alligator (R019) – 175mm (Code 740330000) Hip• Bird Beak, Up 30° Tip (R0054) – 220mm (Code 741850002)• Bird Beak, Straight Tip, Curved Right 30° (R0058) – 220mm (Code 741890002)• Grasper, Straight Tip, 3,4mm Bite Width, Loose Body (R022) – 220mm (Code 740360002)• Punch, Straight Tip, 3,6mm Bite Width (R003) – 220mm (Code 740170002)• Bird Beak, Straight Tip, Curved Left 30° (R0056) – 220mm (Code 741870002)• Bird Beak, Straight Tip (R0052) – 220mm (Code 741830002)• Suture Cutter, Straight Tip (R0060) – 220mm (Code 741910002) Knee• Punch, Straight Tip, 2,6mm Bite Width (R001) – 175mm (Code 740150000)• Punch, Up 15° Tip, 2,6mm Bite Width (R002) – 175mm (Code 740160000)• Punch, Straight Tip, 3,6mm Bite Width (R003) – 175mm (Code 740170000)• Punch, Up 15° Tip, 3,6mm Bite Width (R005) – 175mm (Code 740190000)• Punch, Up 15° Tip, 3,6mm Bite Width, Curved Left 15° (R007) – 175mm (Code 740210000)• Punch, Up 15° Tip, 3.6mm Bite Width, Curved Right 15° (R009) – 175mm (Code 740230000)• Grasper, Straight Tip, 3,4mm Bite Width, Alligator (R019) – 175mm (Code 740330000)• Punch, Straight Tip, 0,8mm Bite Width (R036) – 175mm (Code 740510000) MANUAL DOUBT CATALOG VIDEO Related Products edit post Razek Screw Instruments edit post Trocar RZ edit post FitPass (R084) edit post Hip Arthroscopy Instruments
